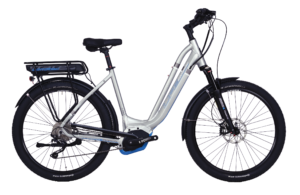

BK24242 Life CX5 10S Nyon

BK24242 Life CX5 10S Nyon

The Life Bike is a unique concept developed with German doctor Ludwig V. Geiger aimed at encouraging people who would not normally ride to improve their lifestyle with exercise. The frame has been especially designed incorporating the Fusion Tube Edge Technology and strong E-Bike components from Ergotec to allow riders of up to 150 kg to use the bike with ease, so they can regain a level of fitness and enjoy a healthier lifestyle. New for 2019 SR Suntour Mobie fork that provide an optimal light and mudguard integration. This model features the Bosch Nyon display with lots of additional features to enhance your ride.





Tech Spec

Frame Set

Frame: Lowstep Life

Fork: SR Suntour MOBIE 25 RLR 100mm

Headset: Part Integrated Headset

Colour: Silver with Blue and White decals

Size: 39cm, 42cm, 47cm, 53cm, 57cm



Electric Drive System

Electric Motor: Bosch Performance CX Centre Motor, 36V, 250W

Sensor: Bosch Performance CX Centre Motor

Controller: Bosch Performance CX Centre Motor

Display: Bosch Nyon display indicating battery charge status and 4 levels of power support, remaining range, speed and easy start function.



Battery

Battery: Bosch 36V LI-ion 500Wh carrier mounted battery

Range: Up to 95 miles depending on level of assistance, load and terrain (figures are based on average use in Eco mode)

Charger: 36V Bosch charger with UK plug adapter

Recharge Time: 2.5-3.5 hours from flat (less from part charged)



Drive System

Gears: Shimano M670 SLX 10S derailleur

Gear Shifter: Shimano DEORE shifters

Chain: Shimano HG54 10S

Chain Set: ZZYZX E-Power Crank 15T

Cassette:  G. Falcon 11-42T 10S

Pedals: Aluminium Comfort Pedals

Bottom Bracket: Bosch Performance CX Centre Motor



Brakes

Brakes: Magura MT5/MT4 180mm/160mm

Brake Levers: Magura Hydraulic Brake Levers



Wheel Set

Rims: ZZYZX HD 650B Disc Aluminium double wall

Hubs: Aluminium hubs

Spokes: Stainless steel spokes

Tyres: Continental Race King 2.2

Inner Tubes: 650B inner tubes



Rider Cockpit

Handlebars: Ergotec M-Bar L Level 6

Grips: Ergonomic grips

Stem: Ergotec Swell R 70 Level 6

Seat Post: Ergotec Ray 30.9mm

Seat Clamp: QR seat clamp

Saddle: SQ Lab 621 Active



Fitted Accessories

Carrier: Racktime E-Bike-Träger Bosch Rear aluminium carrier with 25kg load capacity

Lighting Kit: AXA Compactline 35

Reflectors: Reflectors integrated with lighting system

Mud Guards: Front and rear full mud guards

Chain Guard: Half chain guard

Stand: Rear single side kickstand

Bell: Flexi Bell Black Alloy



Weights (approx.)

Weight of bike Inc battery: 25,60 Kg
