Corratec Life S AP4 Range

Corratec Life S AP4 Range

The Life S city cruiser offers a wide range of benefits for the everyday rider. With the sturdy luggage carrier, one can effortlessly go shopping and be able to comfortably mount the bike with its special geometry and place both feet on the ground at any time while still being sat on the saddle. Resulting in a safe, stylish and comfortable E-bike for any leisure rider or commuter.

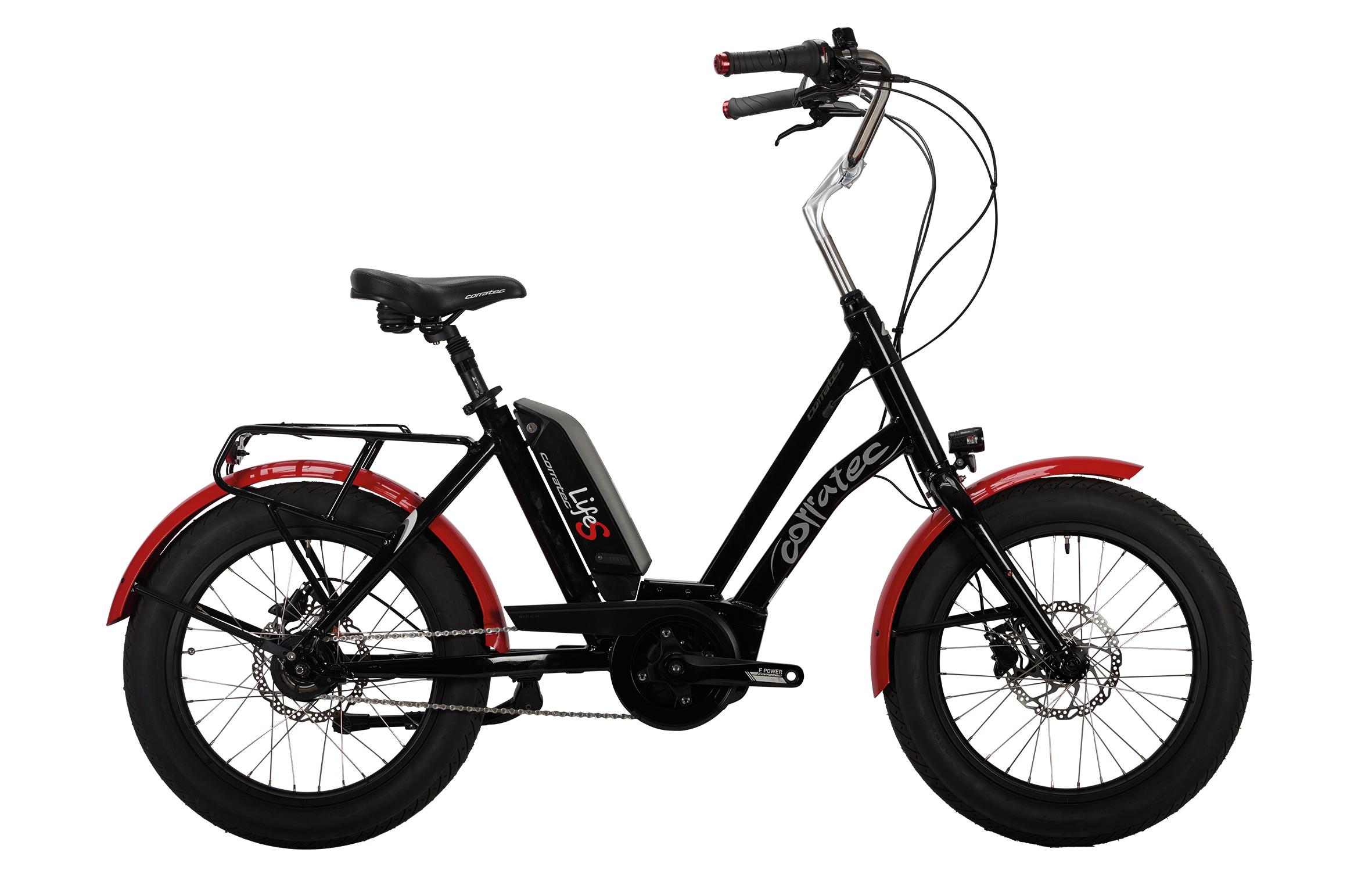

BK24280 CORRATEC LIFE S AP4 £2499

BK24281 – CORRATEC LIFE S AP4 £2499

BK24281 – CORRATEC LIFE S AP4 £2499

BK24281 – CORRATEC LIFE S AP4 £2499

BK24281 – CORRATEC LIFE S AP4 £2499

BK24281 – CORRATEC LIFE S AP4 £2499

Tech Spec

Frame Set
Frame: Life S Lowstep
Fork: Steel Steerer Fork
Headset: Part Integrated Headset
Colour: Black
Size: Uni frame

Electric Drive System
Electric Motor: Bosch Active Plus Centre Motor, 36V, 250W
Sensor: Bosch Active Plus Centre Motor
Controller: Bosch Active Plus Centre Motor
Display: Bosch Purion display indicating battery charge status and 4 levels of power support, remaining range, speed and easy start function.

Battery
Battery: Bosch 36V LI-ion 400Wh frame mounted battery
Range: Up to 75 miles depending on level of assistance, load and terrain (figures are based on average use in Eco mode)
Charger: 36V Bosch charger with UK plug adapter
Recharge Time: 2.5-3.5 hours from flat (less from part charged)

Drive System
Gears: Shimano Nexus 8 Speed Hub Gears
Gear Shifter: Shimano Nexus 8 speed Revoshifter
Chain: Shimano NX10
Chain Set: ZZYZX E-Power Crank 42T
Cassette: Shimano NEXUS 18T 8S
Pedals: Aluminium Comfort Pedals
Bottom Bracket: Bosch Active Plus Centre Motor

Brakes
Brakes: Shimano Hydraulic Disc Brake MT200 180mm/160mm
Brake Levers: Shimano Hydraulic Brake Levers

Wheel Set
Rims: ZZYZX Trekking
Hubs: Aluminium hubs
Spokes: Stainless steel spokes
Tyres: Innova 20“ x 3.0
Inner Tubes: 20” inner tubes

Rider Cockpit
Handlebars: Ergotec Bügel EWG
Grips: Ergonomic grips
Stem: Ergotec Vorbau Cobra
Seat Post: ZZYZX Twin Bolt Suspension 30.9
Seat Clamp: QR seat clamp
Saddle: Corratec Trekking Saddle

Fitted Accessories
Carrier: Racktime E-Bike-Träger Bosch Rear aluminium carrier with 25kg load capacity
Lighting Kit: AXA Compact Line 20
Reflectors: Reflectors integrated with lighting system
Mud Guards: Front and rear full mud guards
Chain Guard: Half chain guard
Stand: Rear single side kickstand
Bell: Flexi Bell Black Alloy

Weights (approx.)
Weight of bike Inc battery: 23,60 Kg
