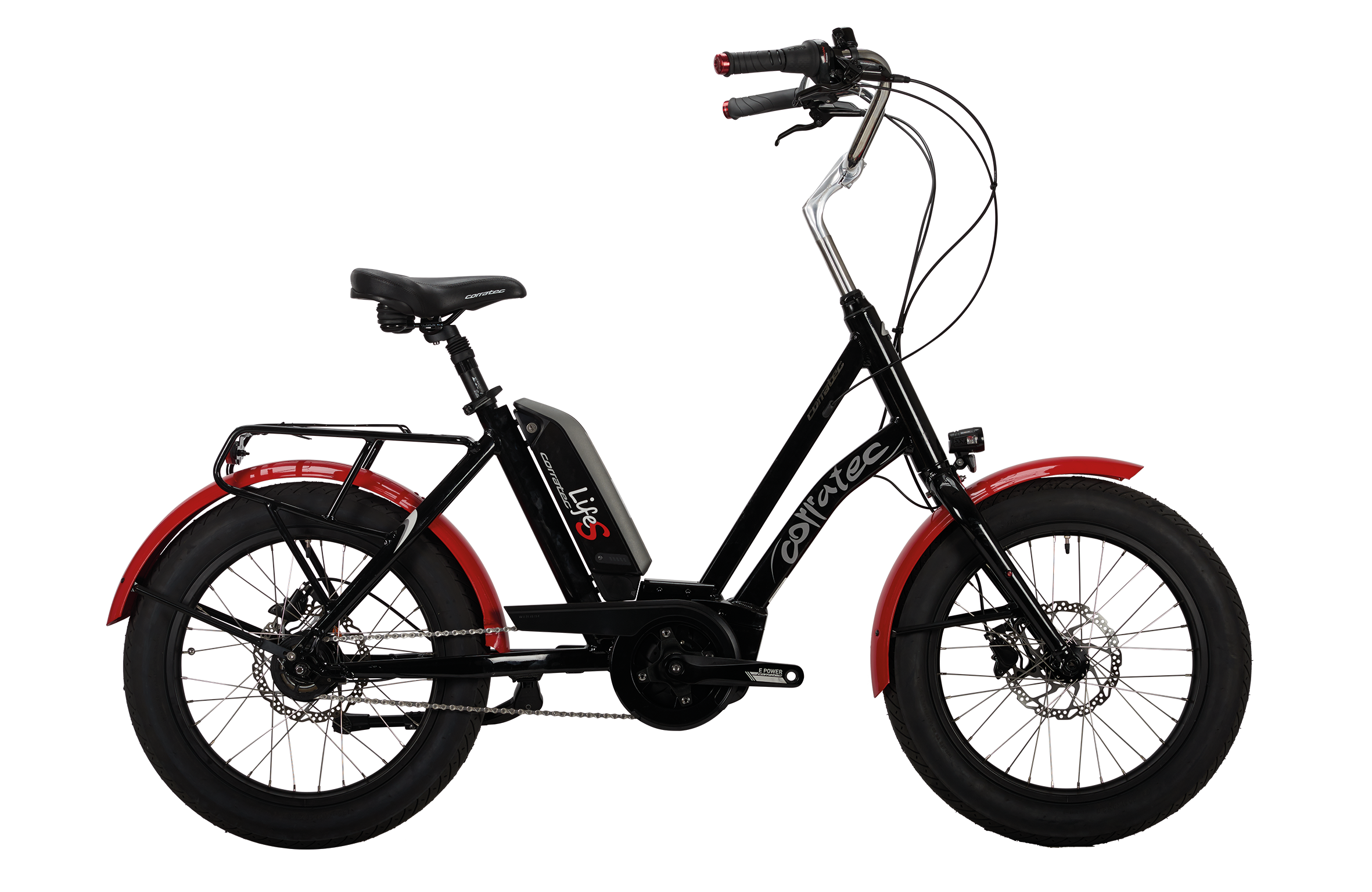

Corratec LIFE S AP5 Range

BK24281 AP5 Life S


The Corratec Life S AP5 with the 500Wh battery offers a wide range of benefits for the everyday rider. With the sturdy luggage carrier, one can effortlessly go shopping and be able to comfortably mount the bike with its special geometry and place both feet on the ground at any time while still being sat on the saddle. It also allows for small trekking tours for those feeling more adventurous. Resulting in a safe, stylish and comfortable E-bike for any leisure rider or commuter.




 Tech Spec

Frame Set

Frame: Life S Lowstep

Fork: Steel Steerer Fork

Headset: Part Integrated Headset

Colour: Black

Size: Uni frame


Electric Drive System

Electric Motor: Bosch Active Plus Centre Motor, 36V, 250W

Sensor: Bosch Active Plus Centre Motor

Controller: Bosch Active Plus Centre Motor

Display: Bosch Purion display indicating battery charge status and 4 levels of power support, remaining range, speed and easy start function.



Battery: Bosch 36V LI-ion 500Wh frame mounted battery

Range: Up to 95 miles depending on level of assistance, load and terrain (figures are based on average use in Eco mode)

Charger: 36V Bosch charger with UK plug adapter

Recharge Time: 2.5-3.5 hours from flat (less from part charged)


Drive System

Gears: Shimano Nexus 8 Speed Hub Gears

Gear Shifter: Shimano Nexus 8 speed Revoshifter

Chain: Shimano NX10

Chain Set: ZZYZX E-Power Crank 42T

Cassette:  Shimano NEXUS 18T 8S

Pedals: Aluminium Comfort Pedals

Bottom Bracket: Bosch Active Plus Centre Motor



Brakes: Shimano Hydraulic Disc Brake MT200 180mm/160mm

Brake Levers: Shimano Hydraulic Brake Levers


Wheel Set

Rims: ZZYZX Trekking

Hubs: Aluminium hubs

Spokes: Stainless steel spokes

Tyres: Innova 20“x 3.0

Inner Tubes: 20” inner tubes


Rider Cockpit

Handlebars: Ergotec Bügel EWG

Grips: Ergonomic grips

Stem: Ergotec Vorbau Cobra

Seat Post: ZZYZX Twin Bolt Suspension 30.9

Seat Clamp: QR seat clamp

Saddle: Corratec Trekking Saddle


Fitted Accessories

Carrier: Racktime E-Bike-Träger Bosch Rear aluminium carrier with 25kg load capacity

Lighting Kit:  AXA Compact Line 35

Reflectors: Reflectors integrated with lighting system

Mud Guards: Front and rear full mud guards

Chain Guard: Half chain guard

Stand: Rear single side kickstand

Bell: Flexi Bell Black Alloy


Weights (approx.)

Weight of bike Inc battery: 23,60 Kg

More details to follow
