REVELSTOKE

Mountain mover

‘Wider hubs mean a stiffer, sharper ride, so you can fling the Revelstoke up and down mountains with ease. Whether you choose 27.5″+ or 29″ wheels, it will soak up the toughest terrain and leave you filthy, grinning and panting for more’.  Van Nicholas 2017





Van Nicholas Revelstoke.    Prices from £3334

Designed for hard fast riding or competition. Whether rigid throughout or as a hard-tail with shock front forks, the Revelstoke is built to endure aggressive riding. Very responsive, the Revelstoke frame and wider hubs provide the ride stiffness that presents the rider with the most exhilarating off-road fun possible on two wheels. Available with 27.5″ wheels or as a 29er.



The stunning Van Nicholas Revelstoke mountainbike is available with the following choice of the finest Shimano or SRAM groupsets.

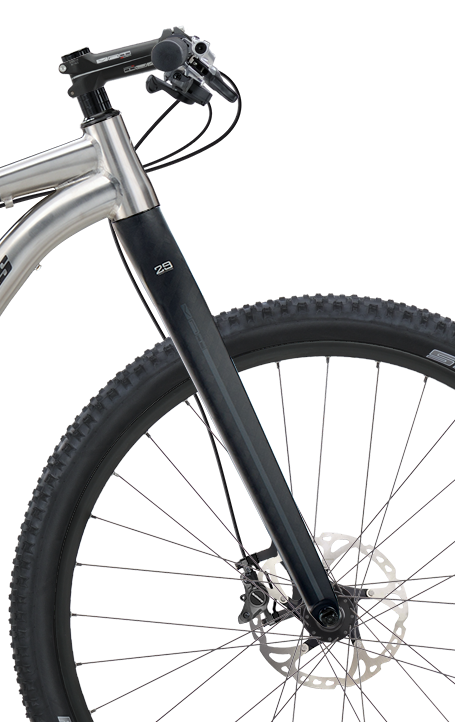

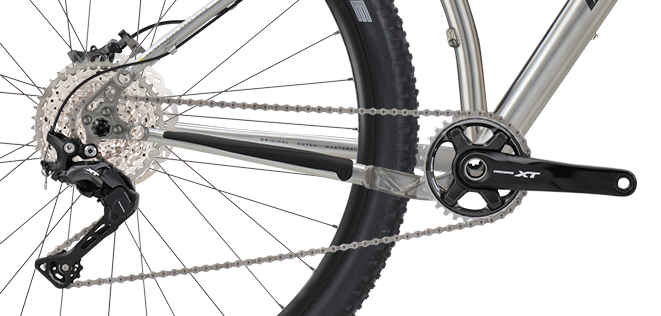

Revelstoke fitted with Shimano XT 11-spd. Front brake. Rear derailleur and chain ring.

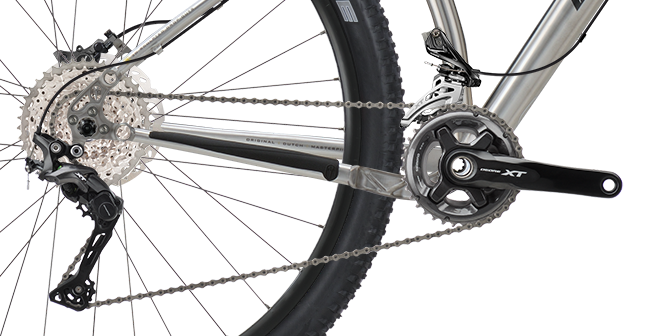

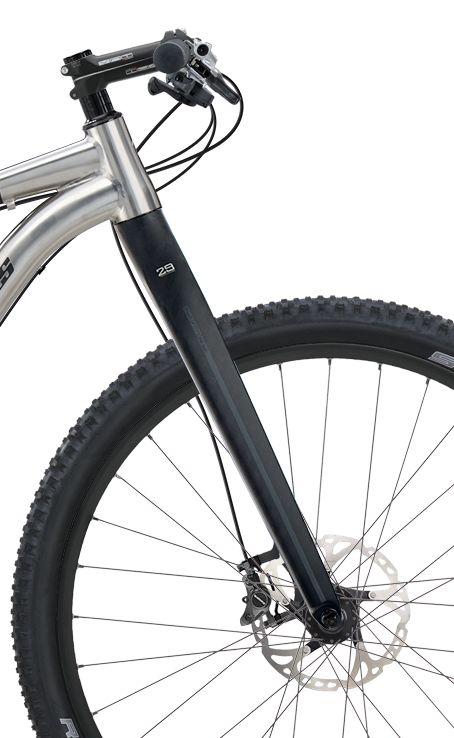

Revelstoke fitted with Shimano XT 22-spd. Front brake. Front and rear derailleur.

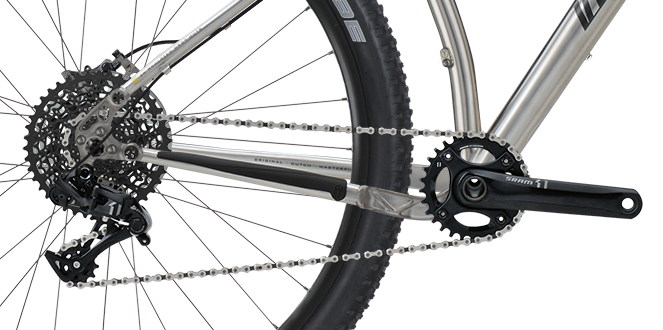

Revelstoke fitted with SRAM X1 11-spd. Front brake. Rear derailleur and chain ring.

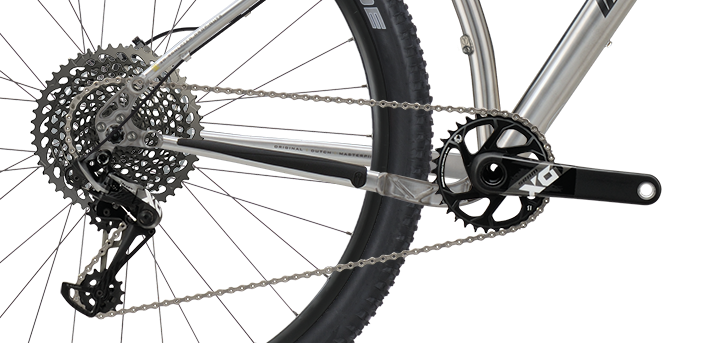

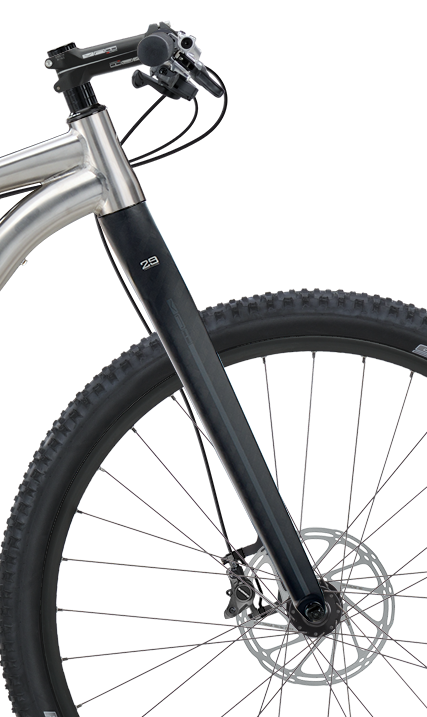

Revelstoke fitted with SRAM X01 Eagle 12-spd. Front brake. Rear derailleur and chain ring.

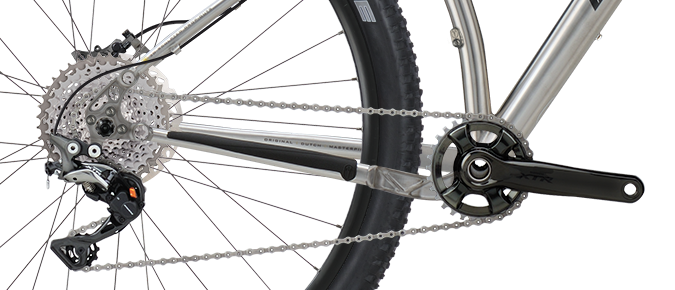

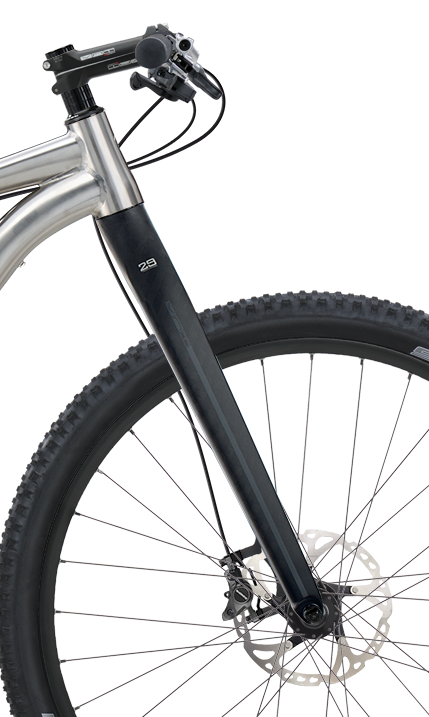

Revelstoke fitted with Shimano XTR 11-spd. Front brake. Rear derailleur and chain ring.

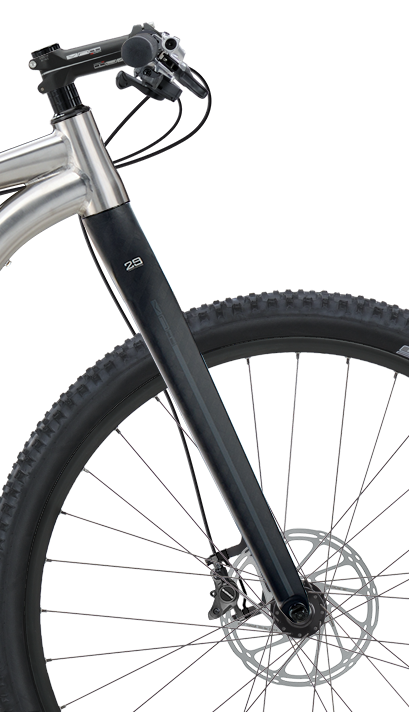

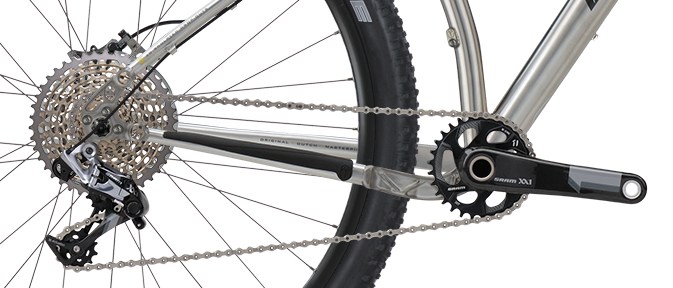

Revelstoke fitted with SRAM XX1 11-spd. Front brake. Rear derailleur and chain ring.

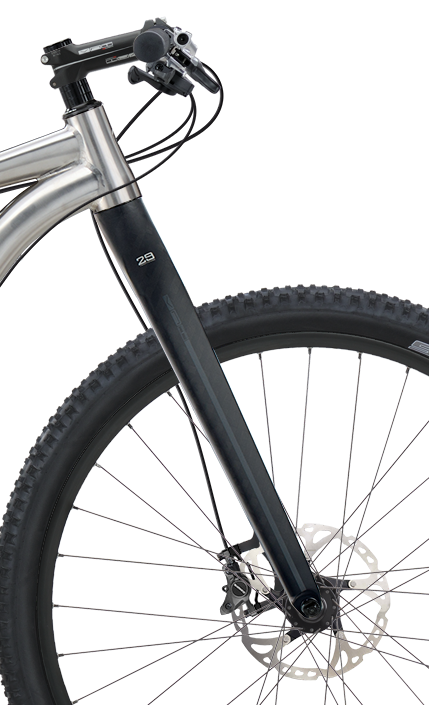

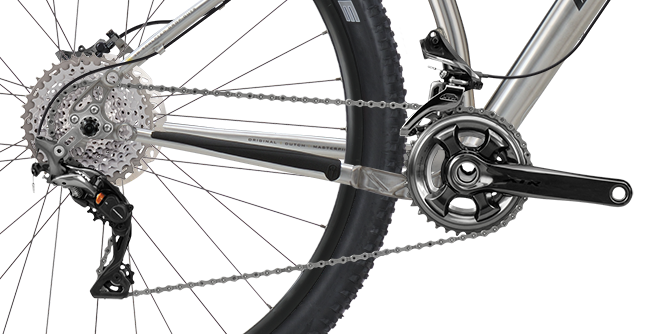

Revelstoke fitted with Shimano XTR 22-spd. Front brake. Front and rear derailleur.

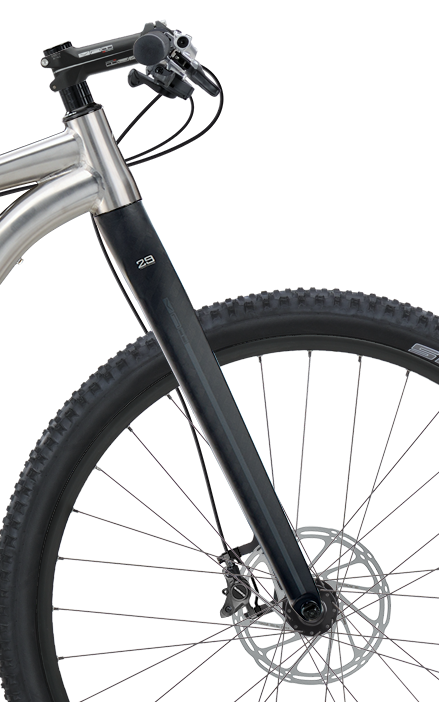

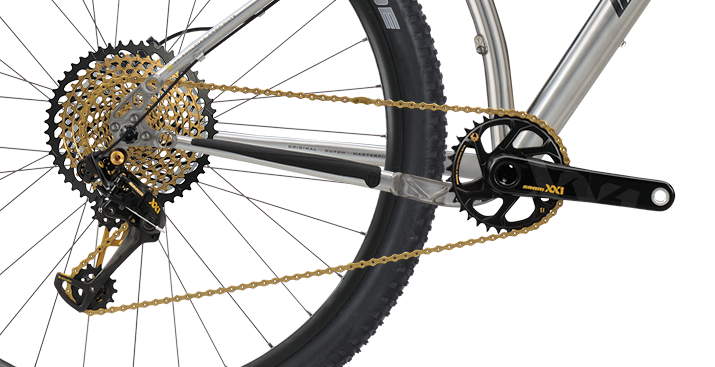

Revelstoke fitted with SRAM XX1 Eagle 12-spd. Front brake. Rear derailleur and chain ring.

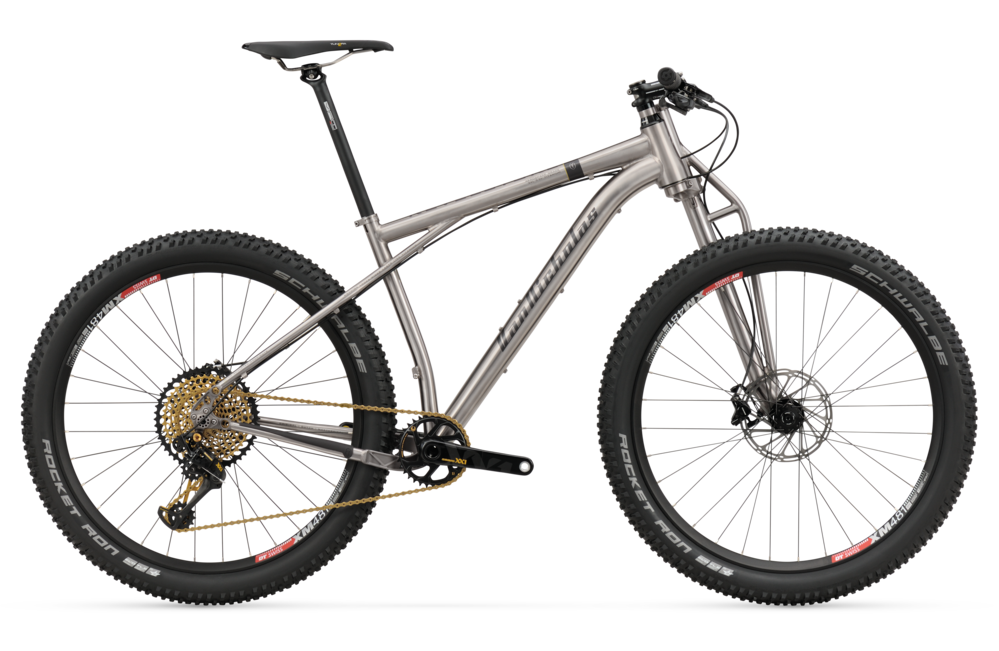

Choices are all shown on Revelstoke 29er. Main photo above shows SRAM XX1 Eagle 12-spd groupset and brake on Revelstoke with 27.5 wheels.

All groupset choices shown on standard carbon VNT front forks. All models of the Revelstoke are available with a choice of the finest rigid and shock forks available.



Van Nicholas Truss Ti. Single tine titanium rigid fork.

Van Nicholas Single Sided Truss Titanium front fork, 481mm axle to crown length and with 45mm rake. Tapered steerertube 1 1/8″-1.5″. Weight with steerer tube and bolts: 1400 grams. Designed with and for Revelstoke 27.5″+/29″ frame, but compatible with some other frames. 27.5″+ tyres up to 2.8″/3.0″. Also the forks support disc rotors up to 180mm.
Finish: Van Nicholas Hand Brushed
Weight: 1400gr (incl. steerer tube and bolts)
Length: 481mm (axle to crown)
Rake: 45mm
Steerer: 1 1/8″-1.5″
Material: Van Nicholas 3Al/2.5V Titanium
Rotor mount: International Standard
Axle: Lefty (The wheel is bolted directly to the fork axle via an allen bolt)



Fox Factory Float 32 Fit CTD Remote. 100mm.

  • Weight 15QR (includes axle): 3.56 lb / 1.61 kg*
  • Travel: 3.9 inches / 100 mm
  • Steerer: 1.5″ taper aluminum
  • Riding Style: XC
  • Adjustments: Climb/Trail/Descend (3 positions)
  • Rebound: Air spring pressure
  • Lower leg: 15QR thru axle system, post style disc brake mounting
  • Spring: Air
  • Fork color: Black Diamond

* Weight taken at 165mm steerer length with star fangled nut and disc brake guide installed.



Rockshox RS-1. Premium front shock fork.

  • Weight 15QR (includes axle): 3.56 lb / 1.61 kg*
  • Travel: 3.9 inches / 100 mm
  • Steerer: 1.5″ taper aluminum
  • Riding Style: XC
  • Adjustments: Climb/Trail/Descend (3 positions)
  • Rebound: Air spring pressure
  • Lower leg: 15QR thru axle system, post style disc brake mounting
  • Spring: Air
  • Fork color: Black Diamond

* Weight taken at 165mm steerer length with star fangled nut and disc brake guide installed.





Rockshox SID RL. 100mm

Weight: 1500 g
Travel: 100 mm
Steerer: Tapered Aluminum 1 1/5″-1 1/8″
Crown Forged, AL 66 TV aluminum
Upper Tube Type: 32 mm
Upper Tube Finish: Low friction anodize
Axle: 15×100 Maxle Lite
Damper Adjust: External rebound, low speed compression to ‘Lock’
Spring: Solo Air
Color: Gloss Black
Brake Type: Magnesium, post mount disc brake
Lower Leg Material: Magnesium



Rockshox Reba RL 100mm

  • Weight 15QR (includes axle): 3.56 lb / 1.61 kg*
  • Travel: 3.9 inches / 100 mm
  • Steerer: 1.5″ taper aluminum
  • Riding Style: XC
  • Adjustments: Climb/Trail/Descend (3 positions)
  • Rebound: Air spring pressure
  • Lower leg: 15QR thru axle system, post style disc brake mounting
  • Spring: Air
  • Fork color: Black Diamond

* Weight taken at 165mm steer length with star fangled nut and disc brake guide installed.
